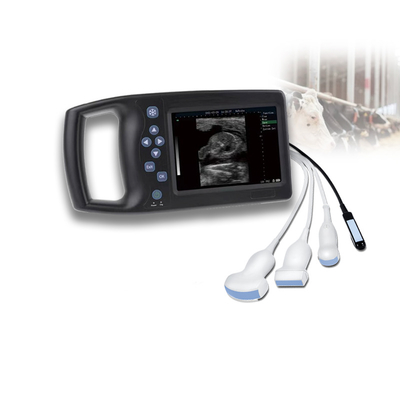

Veterinary Ultrasound Probe Medical Equipment Good Support Veterinary Ultrasound Scanner Laptop Ultrasound Sonoscape Livestock Price

1.0 unit
MOQ
Veterinary Ultrasound Probe Medical Equipment Good Support Veterinary Ultrasound Scanner Laptop Ultrasound Sonoscape Livestock Price
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Model Number: K-S200
Properties: Obstetric Appliances
Display: 5.7-inch LCD screen
Automatic backfat test function: Support
Video playback function: Support
Animal-specific software measurement: Cattle, Sheep, Pig, Horse, Camel, Cat, Dog
Pseudo color choice: could adjust 16 kinds different colors
Display mode: B/2B/4B/BM/M
Probe: Fully waterproof probe
Leather case+neck belt: Yes
Suitcase: Yes
Multiple language: Support
Informations de base
Model Number: K-S200
Conditions de paiement et expédition
Packaging Details: Standard Express, Air Cargo or sea freight carton boxes
Supply Ability: 2000 Unit/Units per Year
Description de produit
Product Description
medical equipment ultrasound probe vet laptop ultrasound sonoscape veterinary cattle ultrasound scanner good price

Quick Details:

1. 5.7-inch LED display
2. Li-ion battery can work as long as 4 hours
3. Display mode: B, B + B, 4B, B + M, M
4. Automatic/manual backfat measurement function
5. Grid ruler and point ruler, which can read the size of the detected object quickly
4. Application: Measurement of 7 kinds of animals(Canine,Feline, Bovine, Equine,Suidae,Ovine, Cattle and so on)
5. Main function: Test pregnancy, number of births, Uterine disease
 5. 256 frame movie playback function, 18 body position markers
6. It can be equipped with 8G memory card and external U disk for storage
7. Full waterproof probe
8. Support multi- language customization
Standard Configuration
Main unit with one Convex probe
1 set
Li-ion Build-in battery
1 pc
Charging cable
1 pc
Leather sheath & neck belt
1 pc
Suitcase
1 pc
Specification
Product Name
Palm Ultrasound Machine
Display
5.6-inch LED display
Display mode
B, B + B, 4B, B + M, M
fast backfat function
automatic backfat function (intelligent one key measurement),fast backfat function (mobile reading ruler) and manual backfat measurement function
Frequency conversion
any probe has five section frequency conversion function
Image adjust
rotate the image up, down, left and right, and flip the interface in black and white
annotation function
is convenient for text and body mark annotation
Routine measurement
distance, perimeter, area, volume and angle
Specialty measurement
heart measurement and lean meat rate measurement;Obstetric measurement of 8 kinds of animals
functions of grid ruler and point ruler
can read the size of the detected object quickly
Image frame rate
256 frame movie playback function
Storage
it can be equipped with 8g memory card and external U disk for storage. It can browse pictures and transfer built-in pictures to U
disk
Image processing
gamma correction (0-7), frame correlation (0-3), line correlation (0-5), edge enhancement (0-3), left and right flip (0-1),
sixteen kinds of pseudo color processing;
Large capacity lithium battery
Imported 18650 standard cell, can work for about 4 hours
The maximum display depth
3.5MHz: 270mm, 6.5mhz: 189mm, 7.5MHz: 165mm
organization harmonic, histogram function
yes
Interface
USB interface, PAL-D / NTSC video, VGA
Display magnification
16 display modes
Gain range
0-100db
Near field adjustment range
- 31 ~ 0
Far field adjustment range
 0 ~ 31
settings
time and date, video output, TV mode, key tone switch, parameter mode, standby protection, multi language selection, custom
gestational age and other settings
Indication
Battery power indication, U disk indication, prompt information display
Cooling channel
Double cooling channels, more smooth cooling
Host size
245x130x44mm (length x width x height)
Main engine weight
740g
Probe
Convex array probe
Micro convex probe
Veterinary rectal probe
Linear array probe
Backfat probe
Frequency
3.5MHZ
6.5MHZ
6.5MHZ
7.5MHZ
Maximum display depth
270mm
189mm
189mm
165mm
Easy to carry and start check the animals Vitals with different probes

Check on the farm real environment

Leather sheath can keep machine away from dust can protect the monitor well
Scanning Image Quality
Ultrasound Workshop
Scanning Video
Other Information
FAQ

Q1: Are you trading company or manufacturer?

A: We are factory which has over 7 years' manufacturing experience.

Q2: Why we find some prices are very high compared with some other suppliers, and from the picture or it's model number, all looks the same?

A: As China is still a developing country, there are only a few products with patent rights, but the copy products spread very fast on the market. Of course, the prices of those copy products is cheaper due to low material, craft and quality control. Anyway, price, quality and service is tightly related.

Q3: What's the MOQ?

A: The MOQ is 1 Set, and samples can be sent for your evaluation.

Q4: How can get the shipping cost?

Please tell us your destination or delivery address, we will check the best Sea Freight or Air Freight for you based on your requirements.

Q5: How long is your delivery time?

A: Usually 3-30 days after order confirmed. Based on the item and quantity.

Q6: Can you do OEM/Private logo/label?

A: Yes, we can do OEM/private logo/label for you. We also have complete facilities and R&D team ready for your service.

Q7: What is your terms of payment?

A: We accept T/T, Alibaba trade assurance order, L/C, Western union, Paypal and more. Please suggest your preferred payment method.

Q8: Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery.

Q9: How to deal with the faulty?

A: First, our products are produced under in strict quality control system, but if any faulty, we will send new spare partrs for free within warranty year.
Secondly, our after-sales department will periodically follow up customers.
