Hospital Human Hot Sale Channel Double Color Automatic Large Screen Used Touch Screen Hematology Analyzer Cbc Machine Optional A7-N

1.0 Units
MOQ
Hospital Human Hot Sale Channel Double Color Automatic Large Screen Used Touch Screen Hematology Analyzer Cbc Machine Optional A7-N
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Type: Blood Analysis SYstem
Model Number: A7
Instrument classification: Class II
Warranty: 1 Year
After-sale Service: Online technical support
Product name: Popular hematology analyser
Founction: Blood Analyzing
Application: Hospital, Clinic
Display: 8.4" color TFT, Windows interface displayed simultaneously
Low sample comsumption: venous 9.8 vl, prediluted 20 vl for twice testing one time
Interface: USB x3, RS232 x2
Large storage capacity: 10,000 blood test samples
Throughput: Up to 60 samples per hour
Input: Mouse and keyboard, connected by USB port
Parameters: 3-part differentiation of WBC, 23 parameters, double channel counter
Informations de base
Model Number: A7
Conditions de paiement et expédition
Description de produit
Product Description
* 3-part blood cell counter
* 20 parameters + 3 histograms
* 2 counting channels
* Up to 60 samples/hour
* 10.4″ large color LCD
* Built-in printer, USB port
* Stable, durable and economical

High Stability & Accuracy
* Use the most advanced binuclear embedded digital circuit system, to make the analytical ability great and stable
* 2 counting channels of WBC and RBC, to make the test results more accurate and less cross- contamination
* Use CPLD technology in data processing, to avoid the interference of electromagnetic signals

Technical Features
* 2 counting mode: whole blood, pre-dilution blood
* Sample pre-dilution: internal diluter, add 1ml diluent automatically by the needle, no need to add diluent manually to avoid
deviation.
* Calibration: automated or manual
* QC: comprehensive QC program, forming and printing the histogram automatically
* Block removal: Real time monitor, high ignition, soak, flush and back flush
Reliable Operation System

* ARM intelligent micro-processing technology
* Data analysis: intelligent pulse formulation technology
* Classification: floating landmark technology
* Module design, fast maintenance
User-friendly System
* 4’’large color LCD displays main menu and all parameters & color histograms in one screen
* Brief operation instruction built-in software, easy for user to view
* Separate module design, very simple mechanical structure, easy maintenance
* Self check for hardware, alarm for error
* Reagent depletion alarm for Lyse, Cleanser and Diluent, as optional function


Specification

Principle: Electrical impedance for counting and SFT method for hemoglobin
Parameters: WBC, LYM#, MID#, GRA#, LYM%, MID%, GRA%,RBC, HGB,
HCT, MCV, MCH, MCHC, RDW-CV, RDW-SD, PLT, MPV, PDW,
PCT, P-LCR, and 3 Histograms for WBC, RBC and PLT
Throughput: Up to 60 samples per hour
Sample Volume: Whole blood: 9μ l, Pre-dilution blood: 20μ l
Aperture Diameter: WBC: 80μm RBC: 50μm
Alarms: Error messages
Display: 10.4’’ large color LCD
Storage: 10,000 sample results including histograms,
available to increase storage by expanding memory card
Printout: Built-in thermal printer, various print-out formats; external printer optional
Input: Mouse and keyboard, connected by USB port
Interface: USB x3, RS232 x2
Working Conditions:
Temperature: 15-35℃, Humidity: ≤80%
Atmospheric pressure: 70Kpa-106Kpa
Power supply: AC220V±22V, 50±1Hz
Dimension: 325x370x545mm(L*W*H)
Weight: 16Kg(net), 25Kg(gross)
Details Images

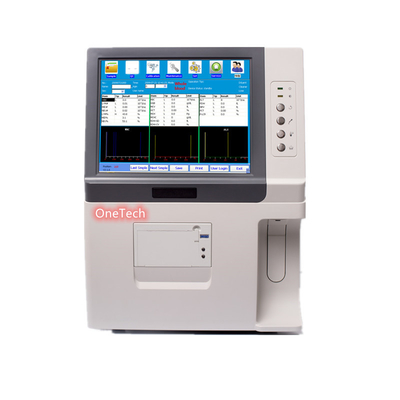

Real good pictures of this full auto hematology analyzer A7
Recommend Products
Packing & Delivery
Safe Packing + Fast Delivery
For this powerful 3 part diff full auto hematology analyzer
Packing: Safe foam carton package to ensure the hematology analyzer be protected well.
Delivery: By DHL, UPS, TNT, FeDex, Air.
Company Profile
11 years' profession

OneTech Med has become an integrated group with subsidiary factories, contribute to developing, producing & marketing advanced medical equipments including Latest Ultrasound Machines, B/W ultrasound, Color doppler ultrasound,3D/4D ultrasound machine, Dental units& Blood test analyzers. We have 11 years' profession in domestic market, and are aiming for oversea market this period of time. So we have much discounted prices for our clients and hope to establish long-term business relationship with our dear customers.
Our Advantages
After-sale service

We provide a good after-sale service to our partners, if has product fault need to repair, please contact us, and we will
cooperate with your engineers to try to deal the fault in the local firstly, so as to minimize the transportation and other
cost.We will guide you how to deal the troubleshooting, and your engineers follow our guidance to solve fault. If need parts
forreplacement, we will send to you. If still can not solve the fault at last, please arrange to deliver the fault parts back to
us for repair.And in warranty period, you should be responsible for the freight of sending the fault parts back to us(You can send by postal the freight is low, the time is long we can deliver new parts for your use). And we will be responsible for the cost of repair and the freight of sending new or after repair parts to you.
